Evaporator Coils
.20220506.png)

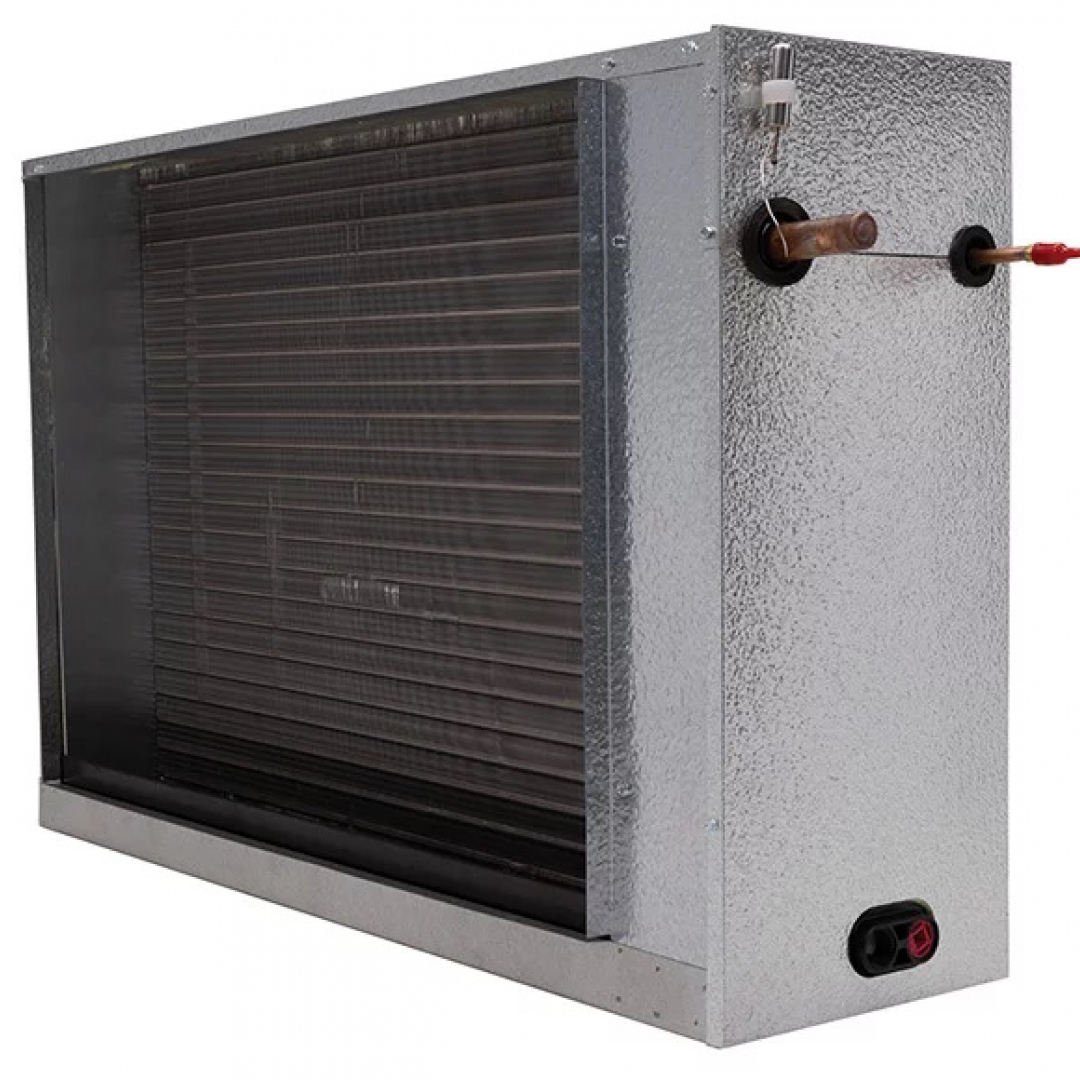

ITEM NUMBER : HH61148A365A2102AP | Evaporator Coils

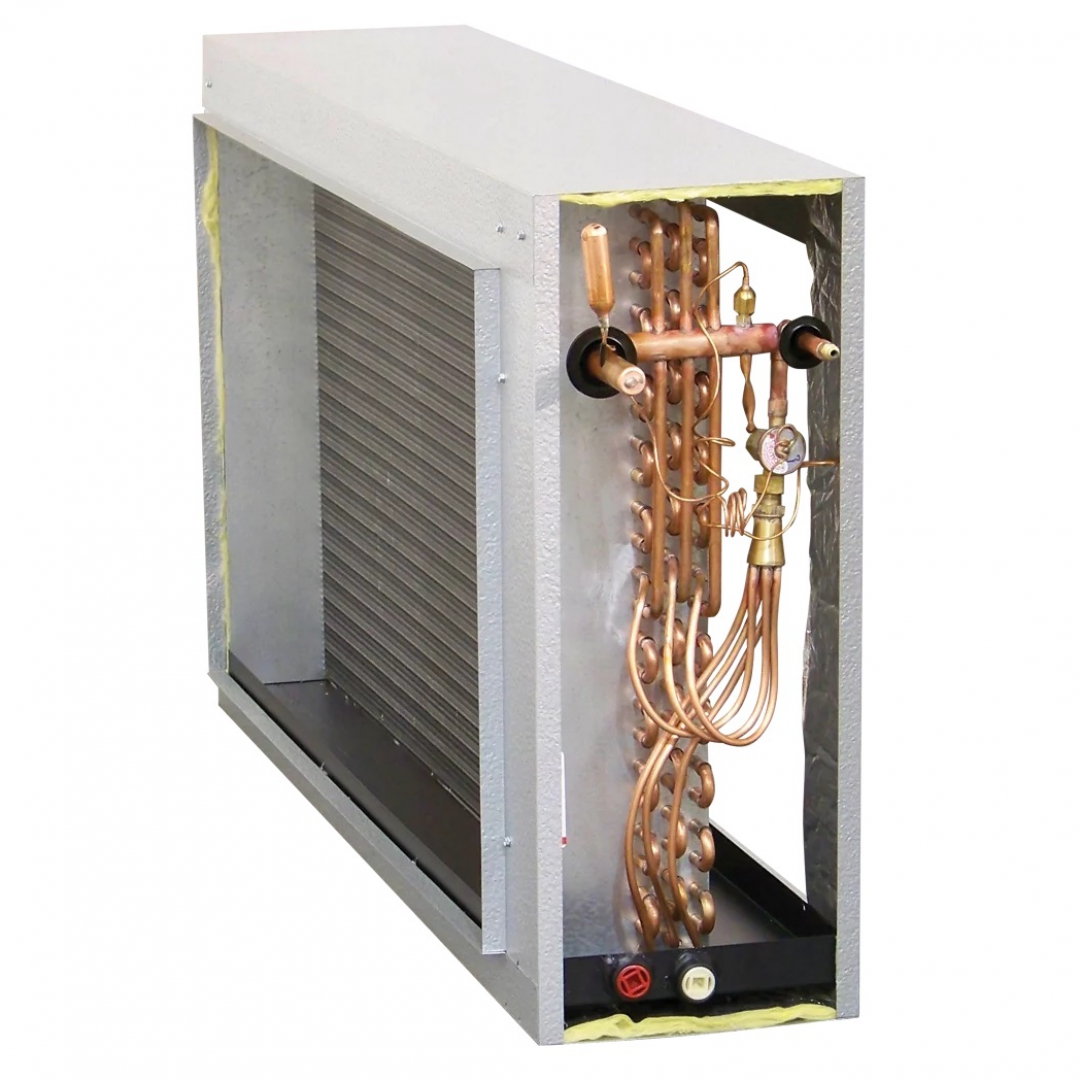

Cased coil cabinets are fully lined with 5/8" foil faced insulation.
FEATURES
- High efficiency lanced fin design.
- R-22, R-410A, AC & Heat Pump compatible.
- Coils are air pressure tested at 500 psi, leak tested with helium, sealed with rubber plugs, then charged with dry air.
- Piston options include externally accessible body for easy piston change out and/or TXV installation.
- Liquid line refrigerant connections are 3/8" ODF.
- Suction line refrigerant connections are 7/8" ODF.
- Microban antimicrobial additive to inhibit the growth of mold and mildew in the drain pan.
- UV resistant drain pans are molded of high temperature (450° F) engineered polymer.
- Non-captive refrigerant lines with long stubs make for easy installation.
- Copper distributor tube assembly provides brass to brass threads for trouble-free service of TXV.
- Corrosion resistant coil header plates.
| PART NUMBER | TONNAGE | UNIT SIZE (WXHXD) | ||
| HH61148A365A2102AP | 4 | 41" x 22 3/4" x 10" |
|
