Evaporator Coils
ITEM NUMBER : | Evaporator Coils

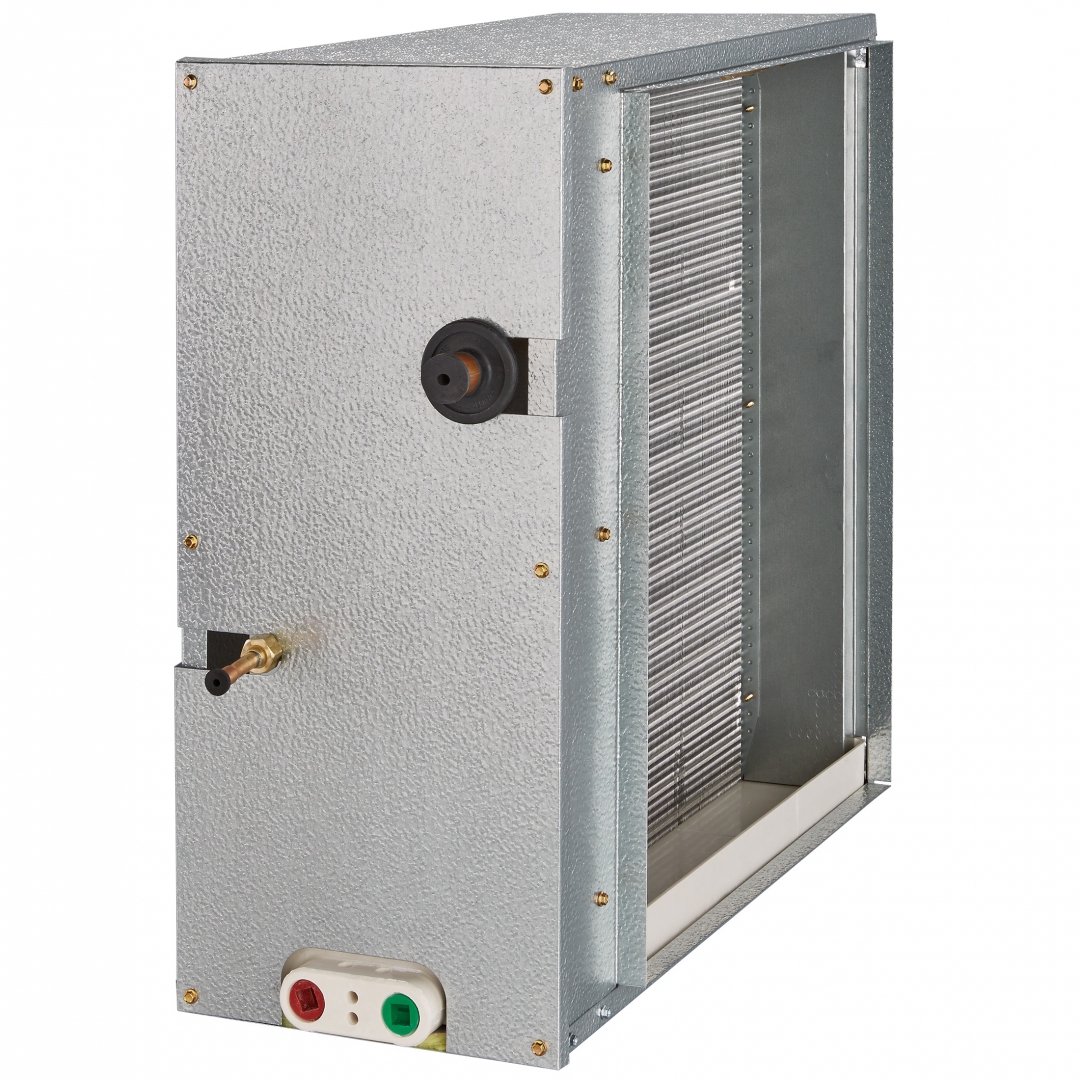

The ADP HH Series Indoor Horizontal Slab Cased Evaporator Coils are engineered for high efficiency with a lanced-fin design, delivering reliable performance for both R-22 and R-410A refrigerants in AC and heat pump systems. These coils feature 5/8" foil-faced insulation for superior energy efficiency. Built for durability, they are air pressure tested at 500 psi, leak tested with helium, and sealed with rubber plugs for long-lasting reliability. With Microban antimicrobial protection to prevent mold and mildew growth, UV-resistant drain pans, and corrosion-resistant coil header plates, these coils ensure optimal functionality. Easy installation is made possible with non-captive refrigerant lines and externally accessible pistons for easy service and TXV installation.
FEATURES
- High efficiency lanced fin design.
- R-22, R-410A, AC & Heat Pump compatible.
- Coils are air pressure tested at 500 psi, leak tested with helium, sealed with rubber plugs, then charged with dry air.
- Piston options include externally accessible body for easy piston change out and/or TXV installation.
- Liquid line refrigerant connections are 3/8" ODF.
- Suction line refrigerant connections are 7/8" ODF.
- Microban antimicrobial additive to inhibit the growth of mold and mildew in the drain pan.
- UV resistant drain pans are molded of high temperature (450° F) engineered polymer.
- Non-captive refrigerant lines with long stubs make for easy installation.
- Copper distributor tube assembly provides brass to brass threads for trouble-free service of TXV.
- Corrosion resistant coil header plates.
| PART NUMBER | TONNAGE | UNIT SIZE (WXHXD) |
