ITEM NUMBER : FDCHCR05 | Dampers

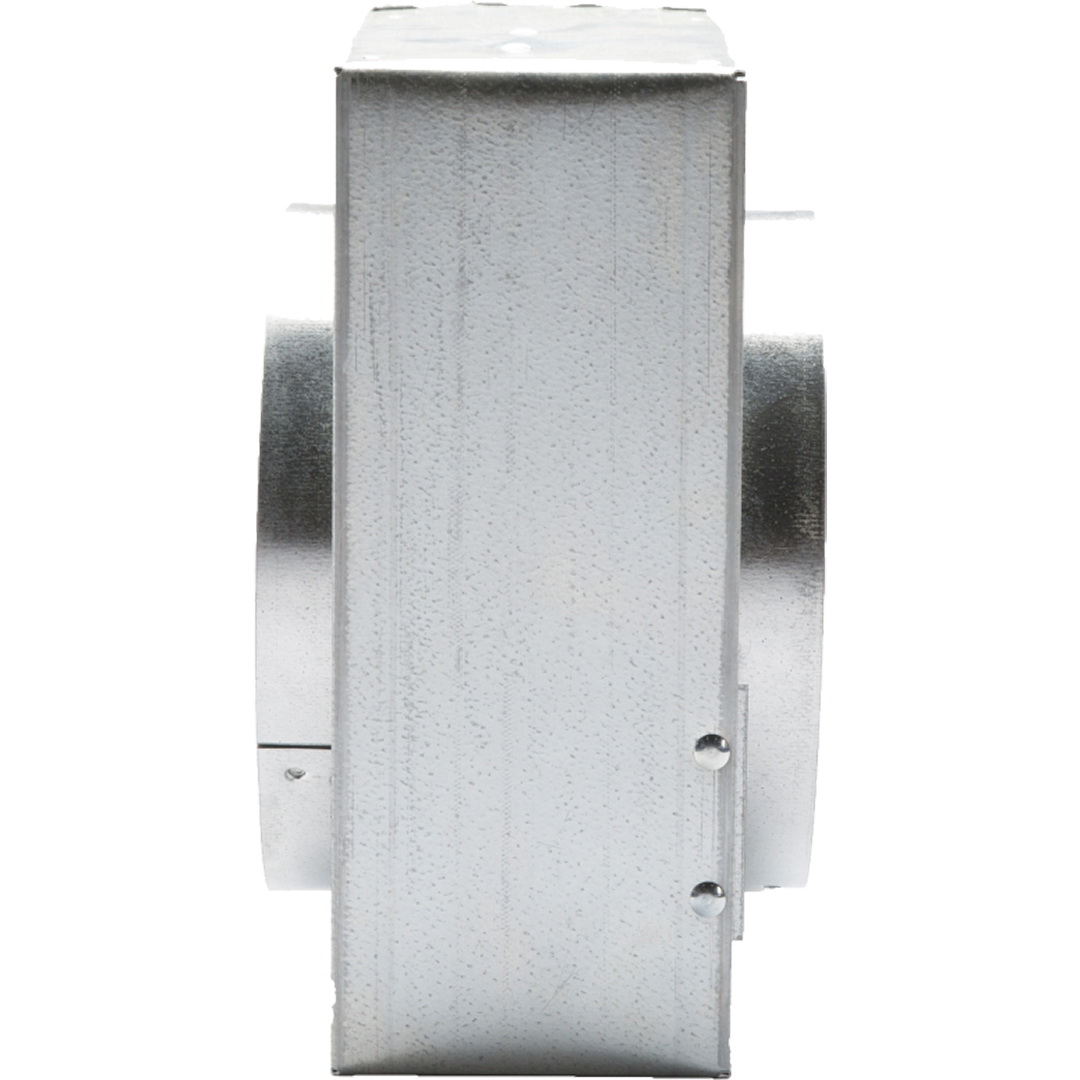

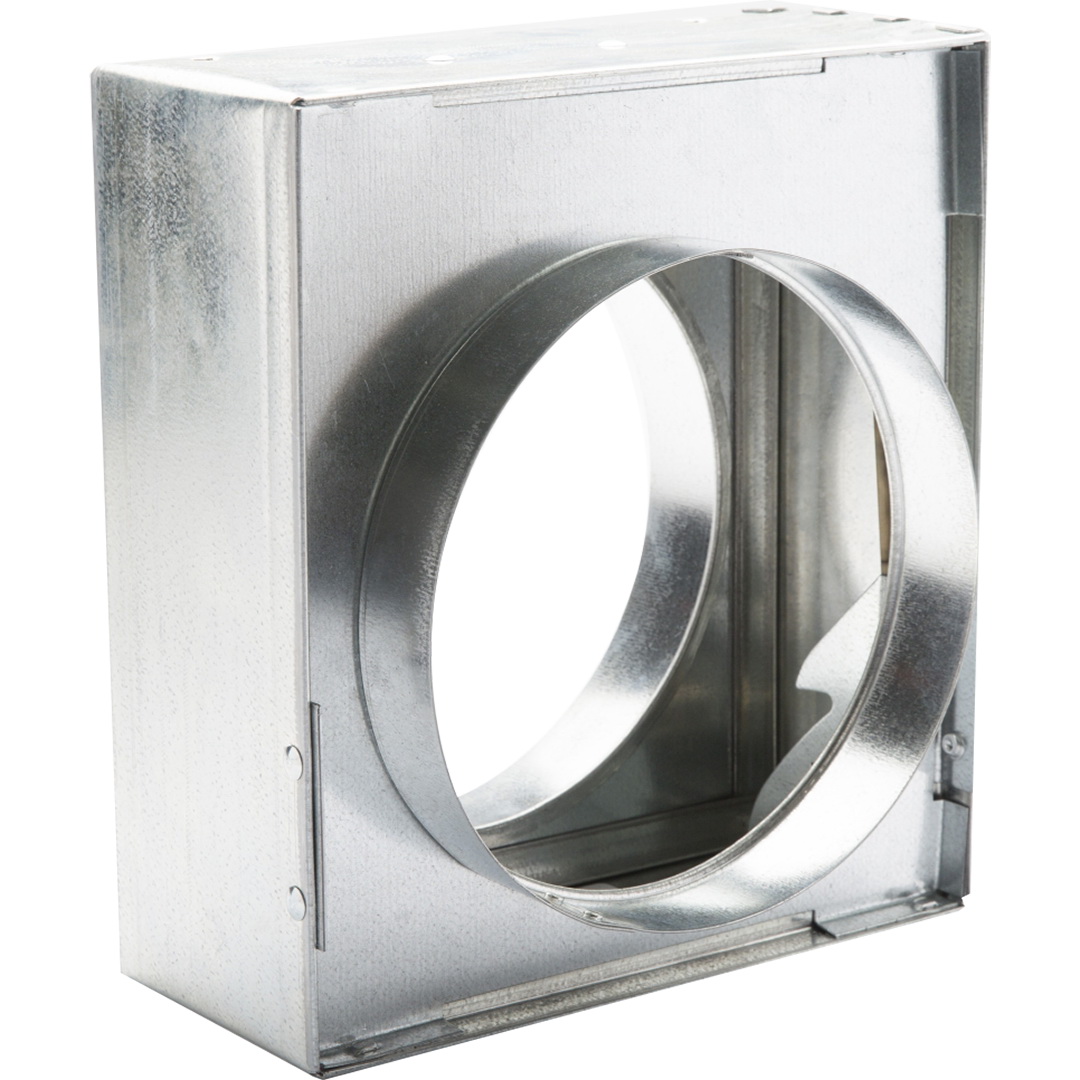

The VENTEX 1.5 Hour C Type Horizontal Static Curtain Fire Damper (FL 165F) provides reliable fire protection for HVAC systems. Constructed with a roll-formed galvanized steel 20ga frame with a hemmed edge, it features an interlocking curtain-type blade for effective containment. Equipped with a 165°F (73.9°C) fusible link, this fire damper ensures optimal performance in fire-resistive applications. Ideal for enhancing safety in HVAC ductwork and protecting against the spread of fire.
FEATURES
- Roll formed Galvanized steel 20ga frame with hemmed edge
- Interlocking curtain type blade
- 165°F (73.9°C) Fusible Link
| PART NUMBER | DIAMETER | FRAME SIZE | DEPTH | ||
| FDCHCR04 | 4" | 6" x 6" | 4.5" |
|
|
| FDCHCR05 | 5" | 7" x 7" | 4.5" |
|
|
| FDCHCR06 | 6" | 8" x 8" | 4.5" |
|
|
| FDCHCR07 | 7" | 9" x 9" | 4.5" |
|
|
| FDCHCR08 | 8" | 10" x 11" | 4.5" |
|
|
| FDCHCR10 | 10" | 12" x 13" | 4.5" |
|
|
| FDCHCR12 | 12" | 14" x 15" | 4.5" |
|
